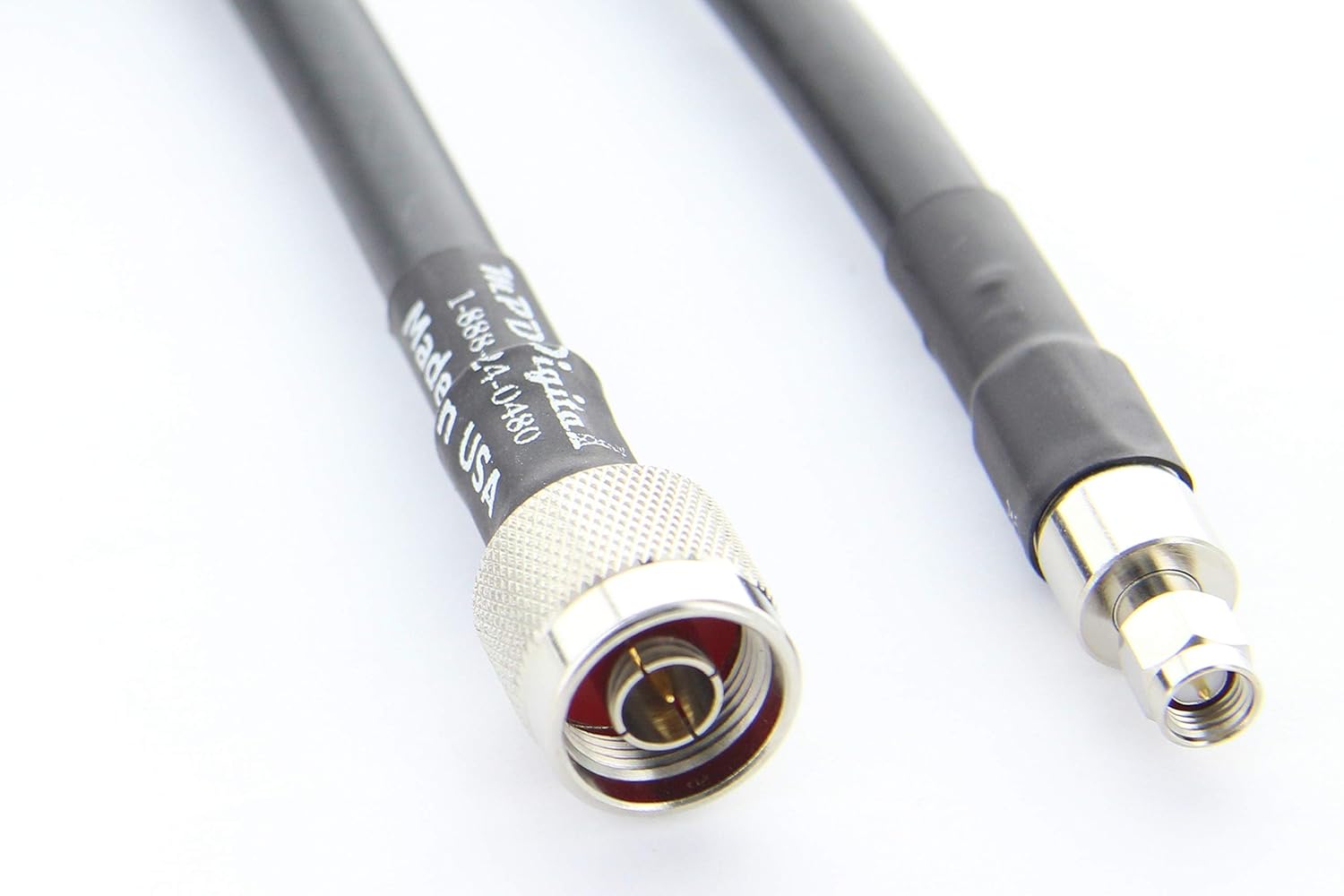

50 Ohm Black Coaxial Cable with N Male and SMA Male Connectors (5 ft) J339565
50 Ohm Black Coaxial Cable with N Male and SMA Male Connectors (5 ft) J339565
CABLE TYPE: MPD400 Black has the same loss characteristics and performance as Times Microwave LMR400 but with more flexibility. MPD-400 SuperFlex 50 ohm Coax Assemblies have a PVC jacket and un-bonded aluminum tape that helps facilitate extra flexibility and maintain the bend radius, all without the extra losses that normally occur with standard polyethylene jacketed coaxial cables.
CONNECTOR TYPE: N Type Male to SMA Type Male coax cable connectors. Connects access points, GPS systems, rotary antenna assemblies, hotspots, receivers, scanners, meters, wireless internet routers and radio transmitters to antennas; DC ~ 6 GHz.
PEOPLES NETWORK: Compatible with Helium and IOT hotspot antennas and devices designed for low power wide area networks (LPWANs or LoRaWAN ) from 868-869 MHz and 902-930 MHz (also known as EU868 Frequency Plan and US915 Frequency Plan). Cable assemblies used for mining cryptocurrency such as HNT, Litecoin, Bitcoin, etc.
ULTRA LOW LOSS: This low loss transmission line can be used in almost any application where handling characteristics and when improved shield and low loss is required.
OUTER JACKET MATERIAL: Flexible UV Proof, Non-Contaminating PVC, Outer Diameter: .405 (10.3mm) nom., SRL: per MIL-C-17/74 - Foam Dielectric Aids Flexibility.
MPD-400PVC Super-Flex is designed to be extra flexible with the tightest bend radius without the loss and is more flexible than the standard polyethylene jacketed LMR. This coax is ideal for a drop in replacement for other comparable LL-400 ultra-flex cables where installation, flexibility and tight quarters are a factor. Manufactured to provide an extremely low loss transmission line to provide optimum RF connectivity. MPD coaxial Antenna Cables have proven themselves in Military, EMS, and harsh environments world wide. MPD Digital manufactures cable assemblies for Amazon.com, OEMs and Individual users. We can customize cables for any RF use and will be happy to list any cable on Amazon on request. All cables are manufactured under MPD Digital Trade Marks and Pending Applicable Patents.
| RG-213 | MPD-400PVC White Jacketed SuperFlex | MPD-400PVC Black Jacketed SuperFlex | Times Microwave LMR-400 UF (UltraFlex) | |
|---|---|---|---|---|
| Overall Diameter (OD) in inches = 0.405 | ||||
| Bend Radius | 1.9 inches | 1.2 inches | 1.2 inches | 1 inch |
| dB Loss per 100 Feet @ 500 MHz | 4.7 dB Loss | 2.85 dB Loss | 2.85 dB Loss | 3.4 dB loss |
| dB Loss per 100 Feet @ 2000 MHz | 10.7 dB Loss | 6.00 dB Loss | 6.00 dB Loss | 7.2 dB Loss |
