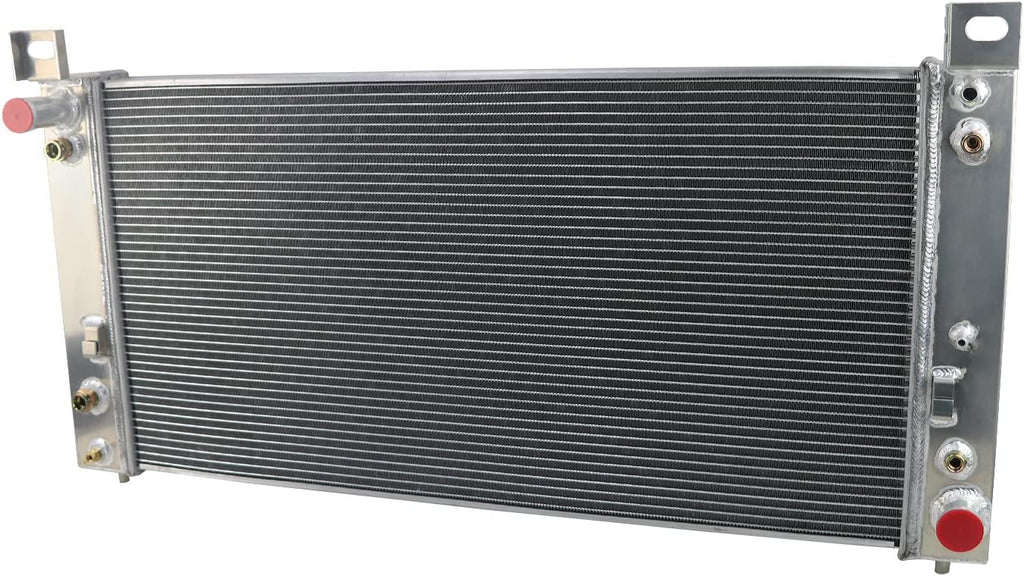

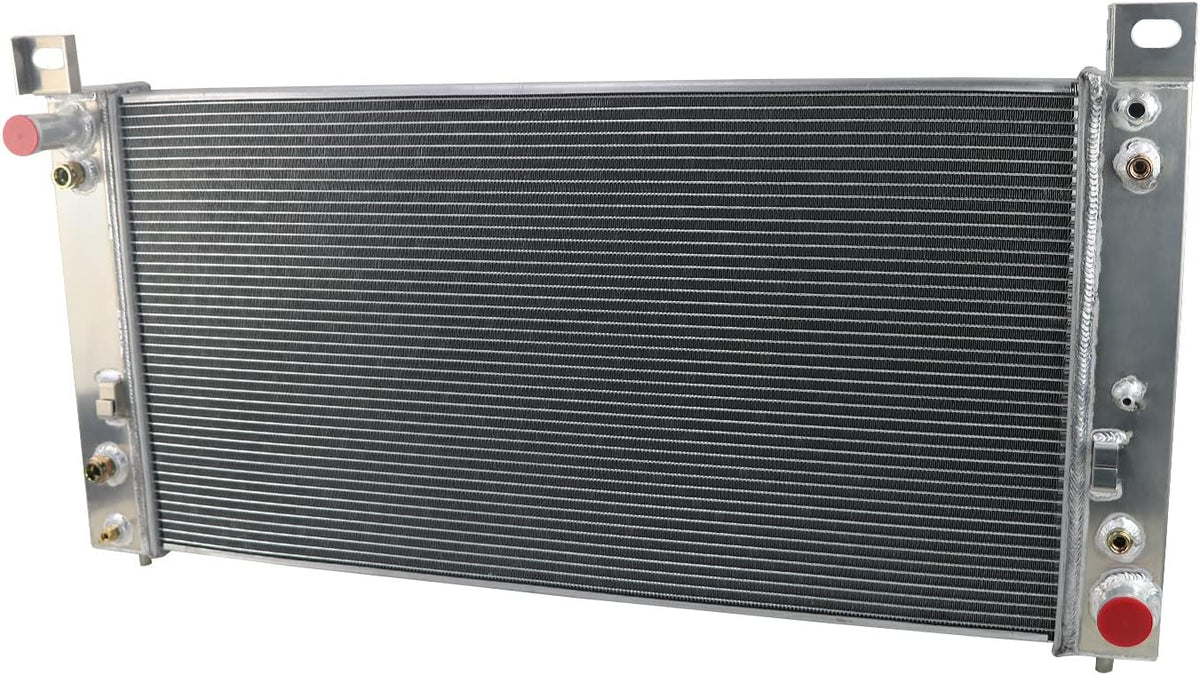

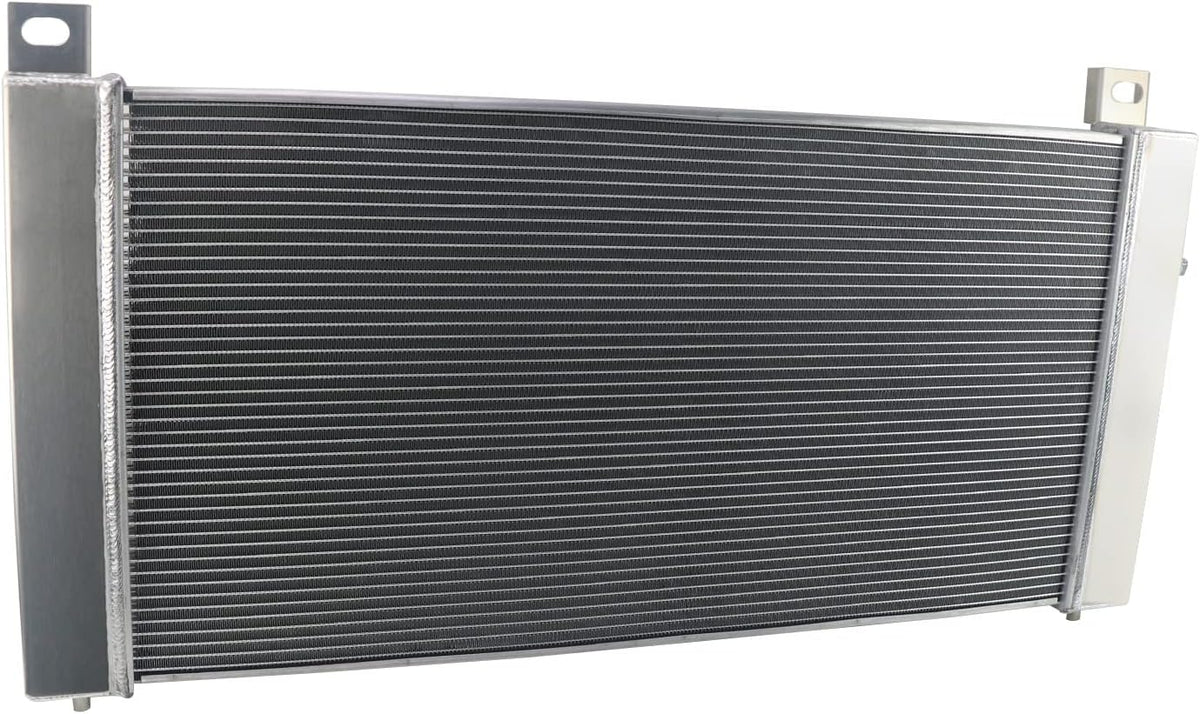

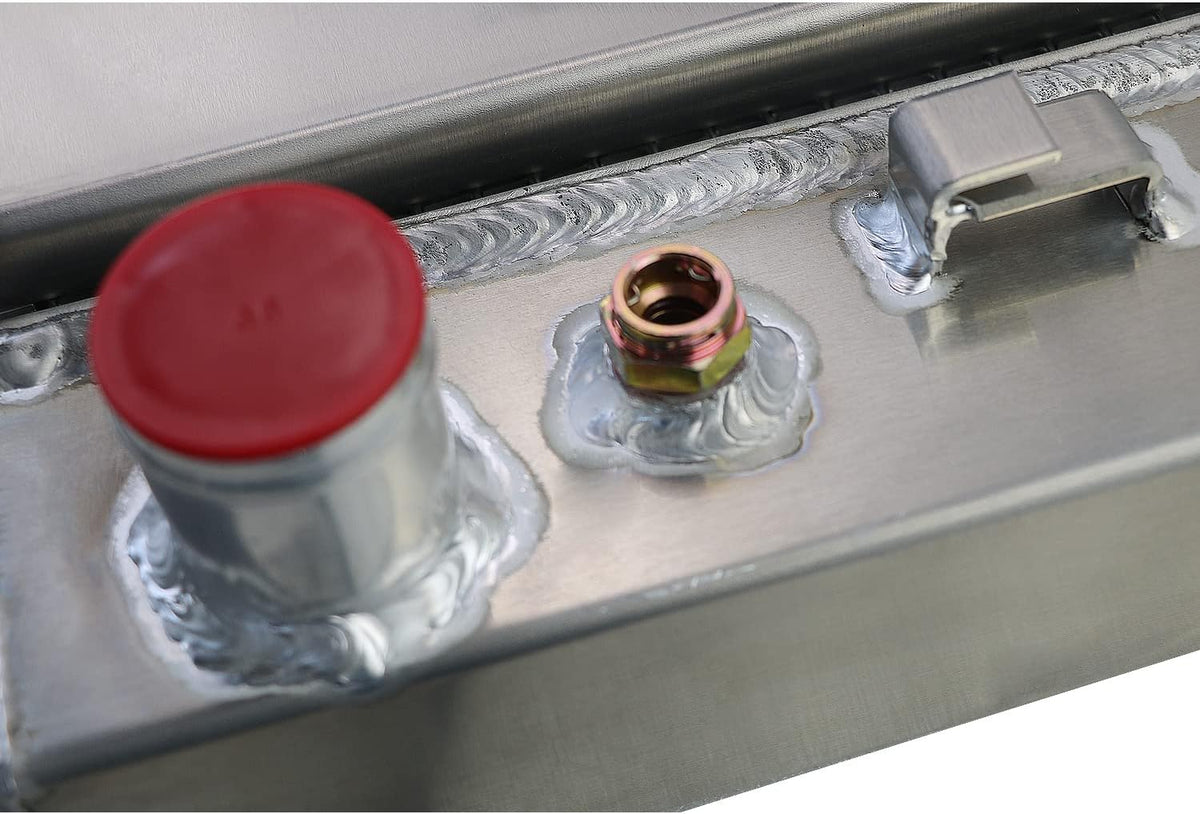

Aluminum Radiator 3 Row E3566
Aluminum Radiator 3 Row E3566
Core Size: 34' W x 17 1/4' H ; Overall Size ：40 4/5' W x 21 1/2' H x 5' T ; Inlet Hose Connection: 1 5/16' Driver Side ; Outlet Hose Connection: 1 9/16' Passenger Side

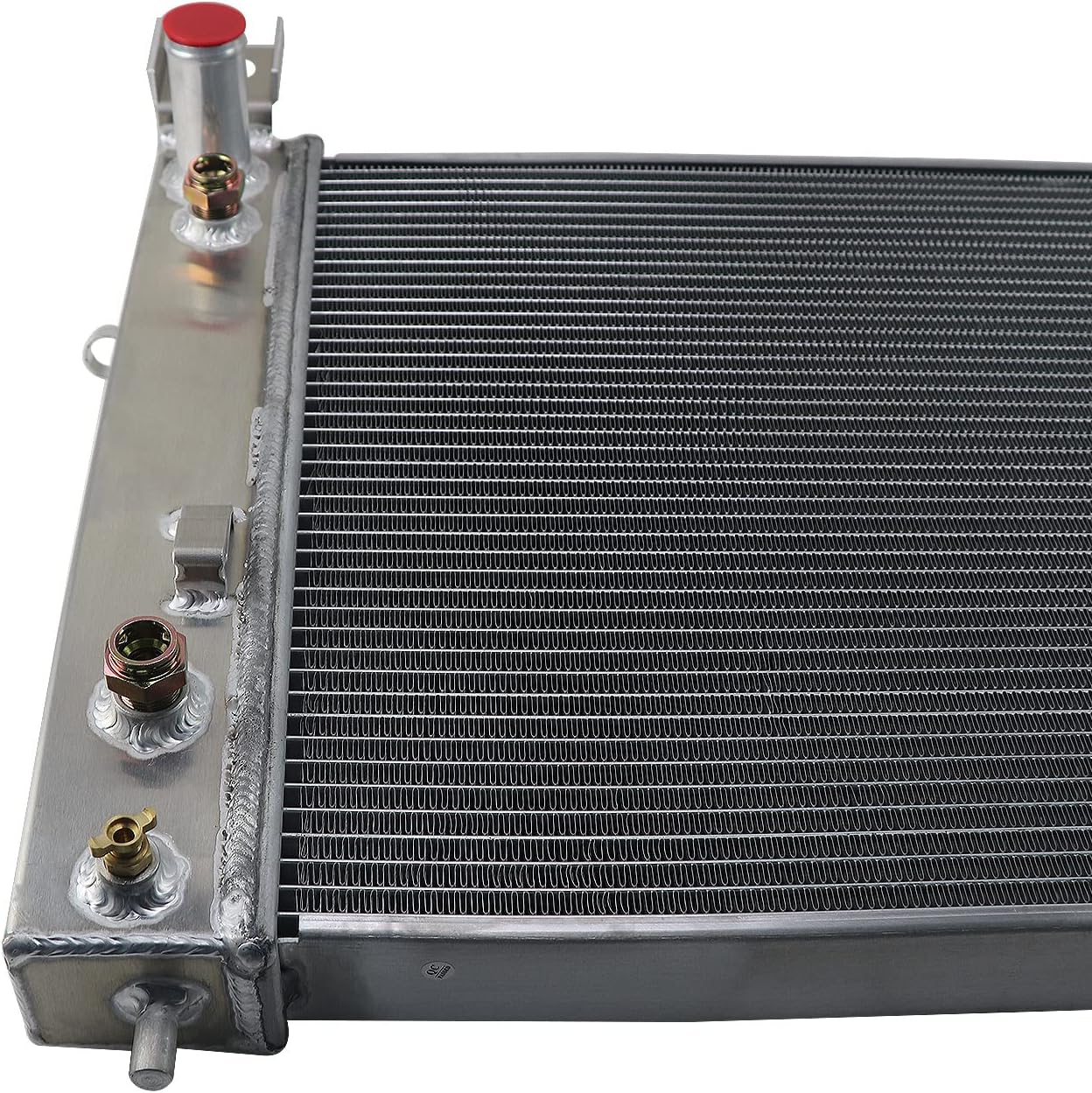

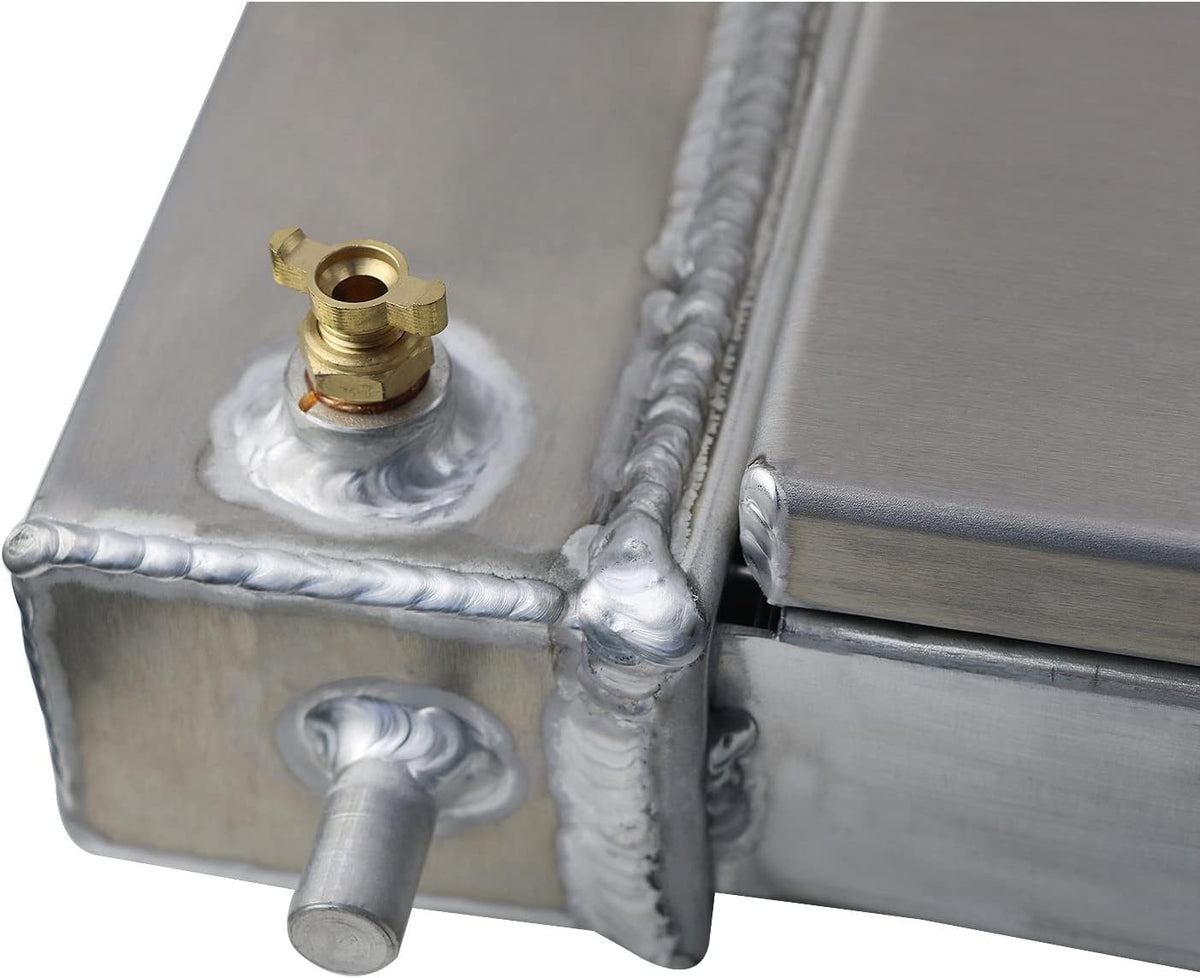

Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain

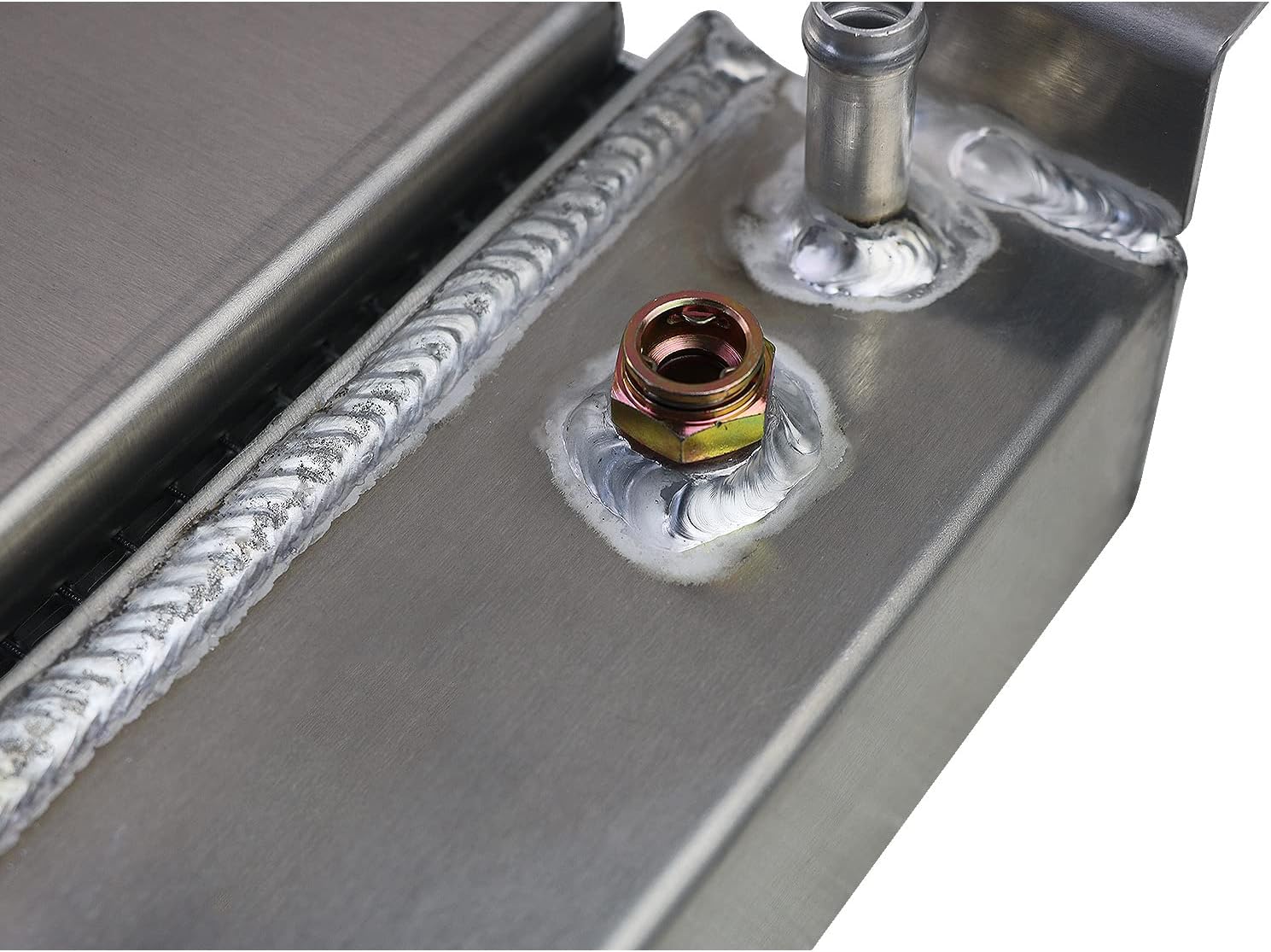

All-aluminum design with durable TIG-welded construction (T-6061 aircraft aluminum)
Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
3-5 days fast shipping from NJ or CA ; Warranty : 3 Year ; If you have any questions, please feel free to contact us, we will try our best to help you.
Fitment:
For Hummer H2 6.0L 6.2L V8 2003-2009
For Cadillac Escalade ESV 2009-2014
For Cadillac Escalade EXT 2010-2013
For Chevy Silverado1500HD / 3500 2001-2007
For Chevy Silverado 1500 2004-2013
For Chevy Silverado 2500 1999-2004
For Chevy Silverado2500HD 2004-2010
For Chevy Silverado 3500HD 2007-2013
For Chevy Suburban 1500/2500 2000-2013
For Chevrolet Tahoe 2000-2006
For GMC Sierra 2008-2010
For GMC Sierra 1500 2001-2011
For GMC Sierra 1500HD 2006-2007
For GMC Sierra 3500HD 1999-2004
For GMC Yukon 2000-2014
For GMC Yukon XL1500 2007-2013
For GMC Yukon XL2500 2000-2013
(Fits 4.8L/5.3L/6.0L/6.2L V8 Engines)

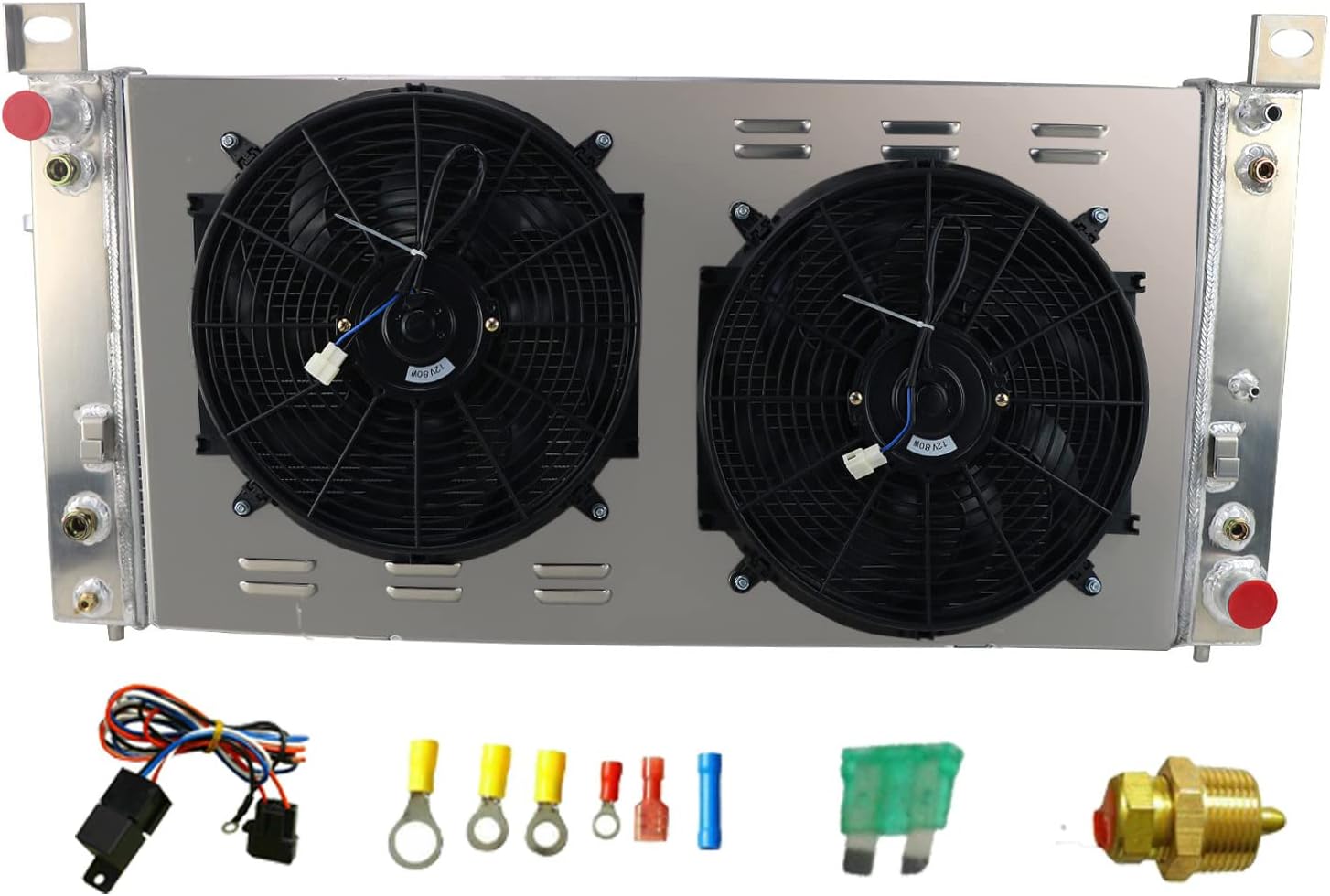

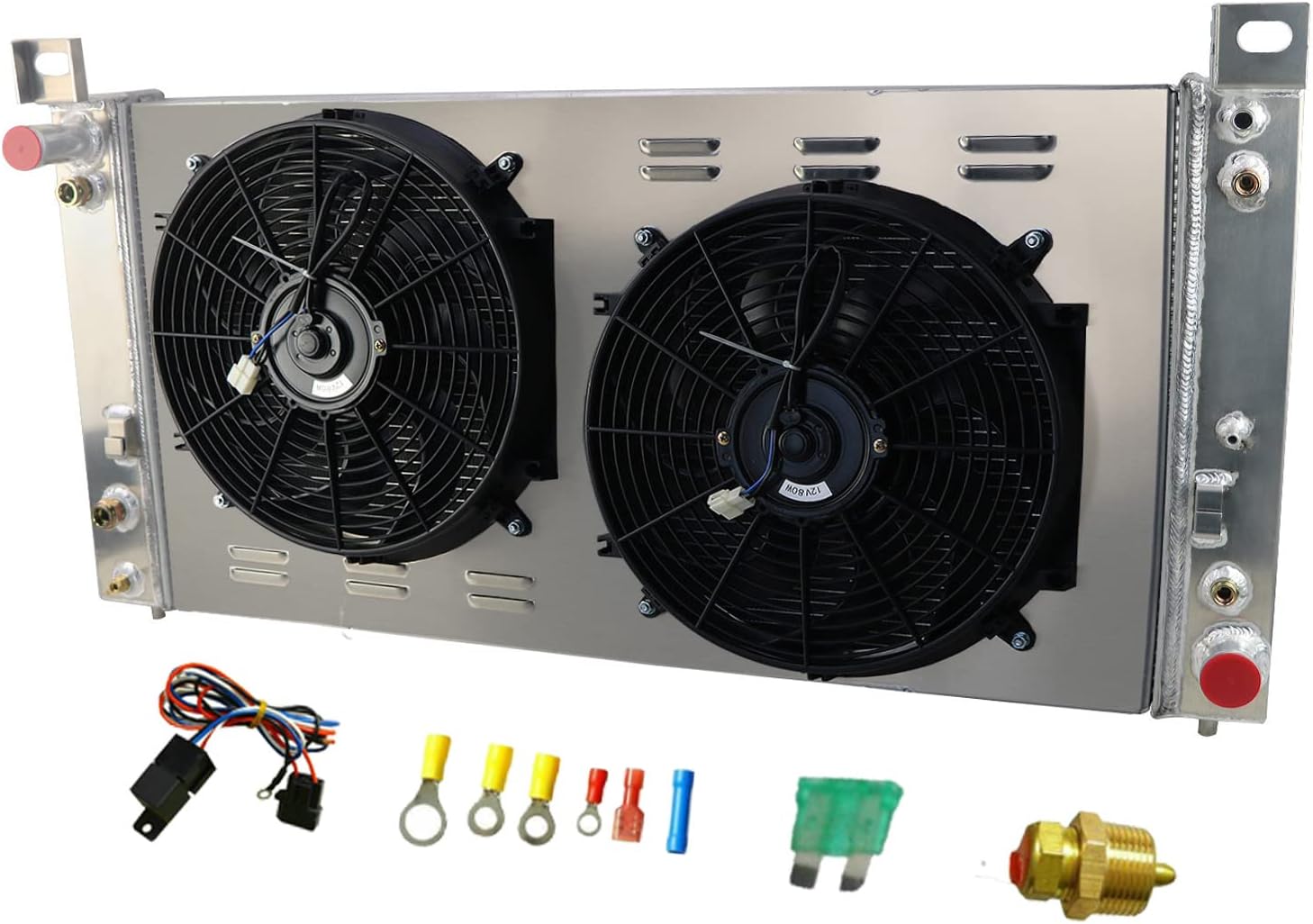

This Listing Is Including:
1 X Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 14' Fans (Includes mounting kits)
1 X Thermostat Relay Kit
FAN DETAILS:
Maximum Fan CFM: 2200±200
FAN DIAMETER X HEIGHT X THICKNESS:14.05' X 14.05' X 2.5'
Number of Blades: 8 blades (Plastic)
Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps
Radiator Details:
3 Row Radiators
Tank Size: 3 1/4' X 18 1/2'
Has 1/2' Nipple Top Passenger Side
Has 5/16' Nipple Middle Passenger Side
Engine Oil Cooler :yes On Driver Side
Transmission Oil Cooler :yes On Passenger Side
Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8' NPT thread-in brass probe w/ 1/2' NPT adapter included.
